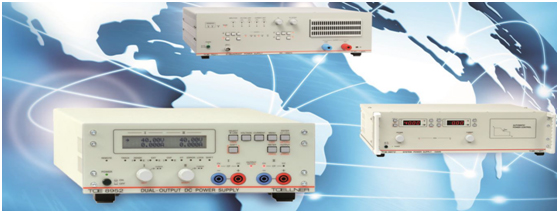

The Wide range of power supply tasks associated with development, testing and production.The TOELLNER range of power supplies offers numerous different models: single output, dual output, triple output and quintuple-output power supplies with highly different voltage and current values. Excellent control properties, absolute continuous load capabilities, unbeatable response time and extremely low noise values convincingly document the recognized high functionalities of all power supplies and other Test & measurement Devices from TOELLNER.
Laboratory Power Supplies: These are suitable for general purpose laboratory purposes as well as loads with a pulsed current consumption.These are available in single output and multiple output power supplies These can be used as a Constant current and Constant voltage source. Precise digital display.electrically decoupled output. Reverse polarity protection. Outputs of dual output power supplies can be connected in series and parallel.Output Power up to 216 W
High Performance Power Supplies: An output power up to 1500 W is provided and Output Voltage and current can be generated up to 400 V and 100 A depending on the model. These Devices are suitable for completely universal application. Auto-ranging,Active Power Factor Corrector(PFC), High rise and fall rates, high endurance, even under extreme load conditions,brief load current current 1.5×I(rated Current) for approx 20 ms and interfacing with GPIB, RS 232, Analog output control are the main features of this type of power supply.
Arbitrary Power Supplies: Arbitrary power supplies for generation of any voltages and current characteristics with an output power from 160 W to 5200 W. some features are: Very high rise and fall rates of the output voltage. Brief load current up to 1000 A, GPIB and Analog interfaces included as standard and imports real time signals from digital storage Oscilloscope or data recording systems.
Function/arbitrary generators: Functions and arbitrary generators represent the most interesting and versatile group of measuring instruments in the LF range nowadays. Function generates up to 44MHz and arbitrary generates up to 40MHz and power function generator with up to 63 W output power
Broadband Amplifier: Broadband Amplifier is capable of supplying the necessary features for a frequency range from DC to 5MHz and output voltages of up to 40 Vpp into 50Ohm. The amplifier gain is continuously adjustable up to maximum 26dB over a frequency range from DC to 5 MHz. Feedback voltage protection and small distortion factor are also the feature of this amplifier.
Four Quadrant Amplifiers/ Power Supplies: Four quadrant amplifiers is able to work as a power sink as well as a power source with equal values of delivered or absorbed power. Some features are: 150 W source and Sink Power, Brief Load current 3×I(rated current),analog control input for externally control.
Electronic Switch/Micro Switch:The Micro Switch TOE 9261 is the first choice for generating short interruptions in supply voltages and therefore ideally suitable for testing vehicle electrics according to the standards. Some special features are: Input voltage is up to 60 V and output current max up to 50 A and 100 A according to the model and Rise and fall time is less than 500ns.
